Pins for LPC11U37


While the LPC11U37 was designed for standard breakaway headers, it can also accomodate mating boards designed for DIP sockets or direct PCB insertion.

For DIP sockets use machined pins like the Samtec TS-1XX-T-AX series

Those pins have a smaller cross section that is closer to the pins of a DIP24 part (0.018" round vs 0.022" x 0.012" rectangular).

LPC11U37

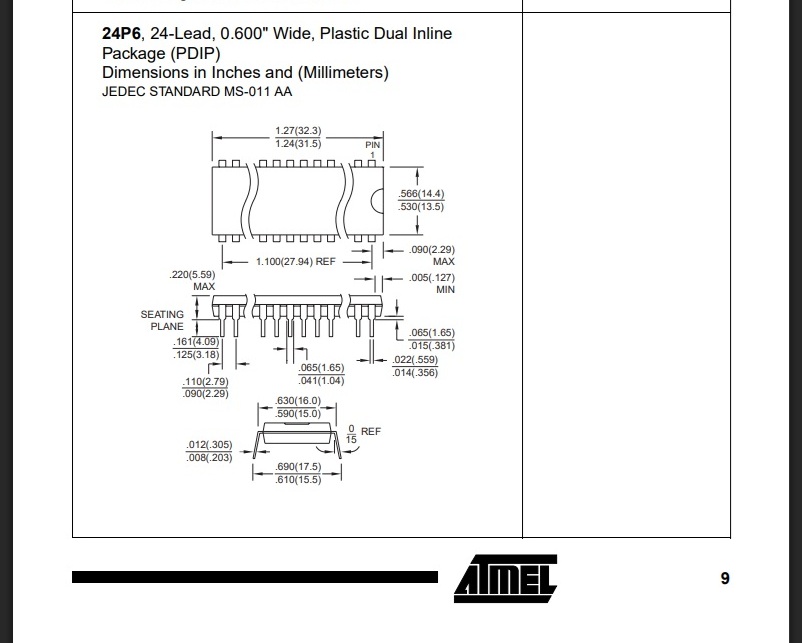

Standard DIP24 package spec

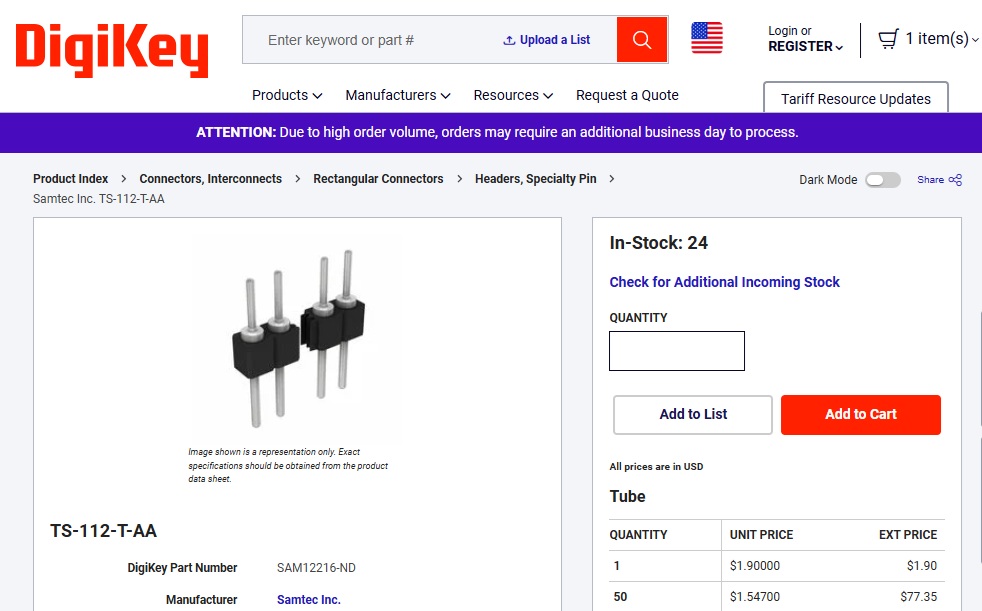

Machine pin compatible with DIP24 socket

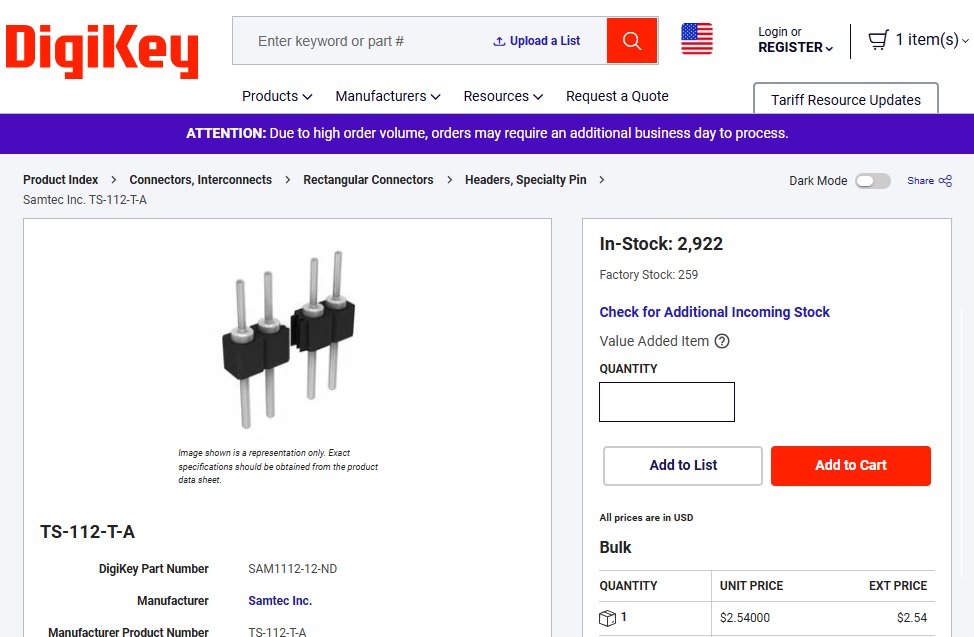

Alternate for DIP24 socket

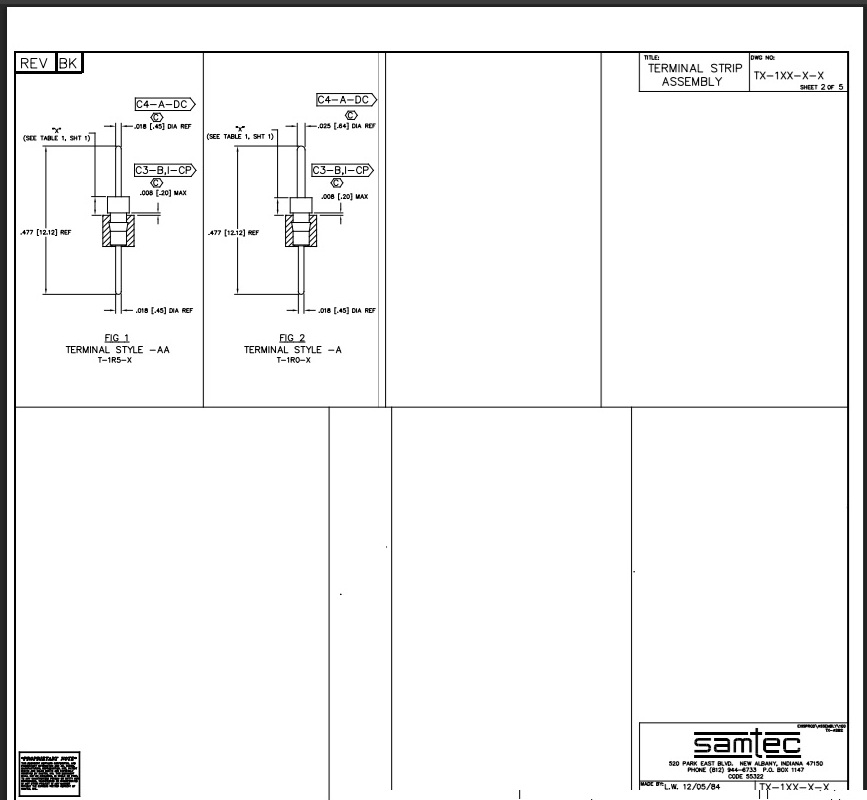

Pin specs for the alternates, 0.18" round

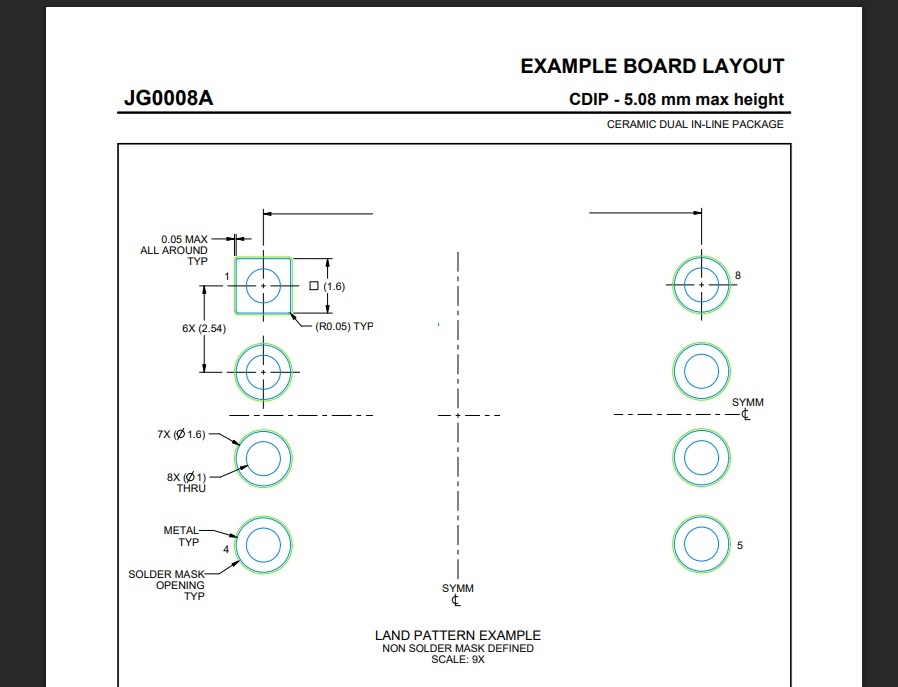

Standard PCB layout for DIP24

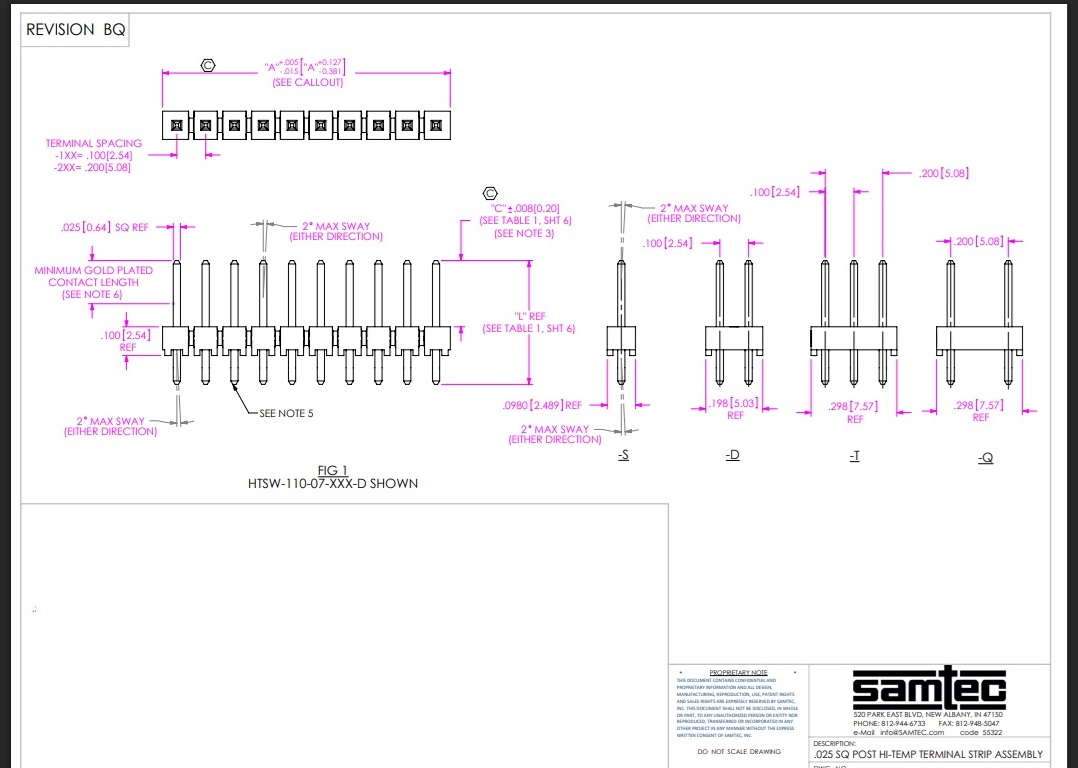

Standard 0.025" sq breakaway header
