These boards are not in production yet, but they use the latest and greatest parts available. We are building them in small quantities for evaluation purposes. We think these are the cutting edge of embedded microprocessor tools. Contact sales for purchase.
Data Logger - LPC4330 eval

Data Logger - LPC4330 eval

Posted on 16th Jan 2024

Nearly every peripheral including the kitchen sink. Powerful programmable parallel/serial shift engine, can be used for camera and display. A standard USB dongle is required. Schematic here System Dual 200 Mhz ARM CPUs LPC4330 Floating point hardware accelerator SDcard Flash file...

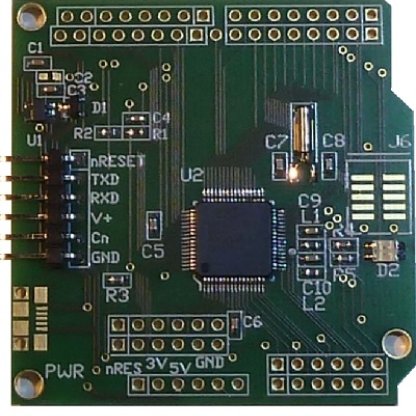

Dual CPU - LPC54102 eval

Dual CPU - LPC54102 eval

Posted on 30th Nov 2023

Twice as many processors, Sixteen times the memory of competitors, Sixteen times the RAM of competitors, and 46 inputs and outputs Contact Coridium about volume pricing which will start at $49 Schematic here System 100 MHz ARM M4 with Floating Point Accelerator details here Second...

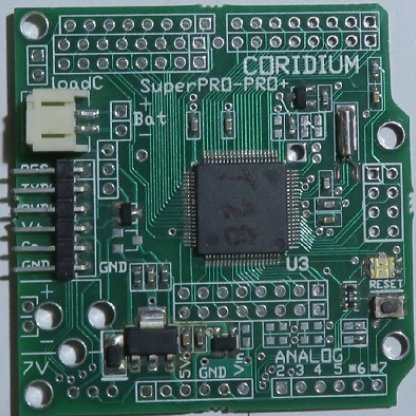

LPC4078 evaluation kit

LPC4078 evaluation kit

Posted on 30th Nov 2023

Pin identical upgrade to the LPC1756 SuperPRO. That board is in production with 5 OEM customers. This board replaces the LCP1756 with an LPC4078 which is 20% faster, has twice the Flash memory, three times the RAM, and introduces 4K of EEPROM. In Addition the M4 FPU accelerates floating point...

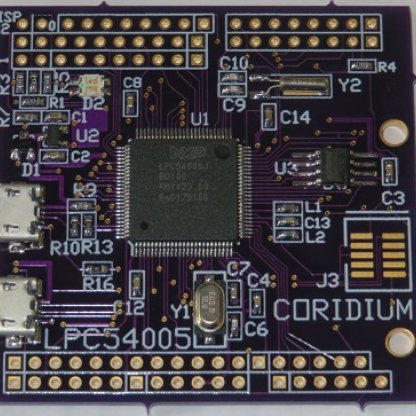

LPC54005 eval

LPC54005 eval

Posted on 30th Nov 2023

This evaluation kit has one of NXP's latest Cortex M4 CPUs with a FPU accelerator for floating point operations. The CPU runs user BASIC or C code from internal 360K SRAM so it operates at the full 180 MHz rate. Code is downloaded on boot from an 1MB QSPI (larger sizes upto 16 MB are available)...
