File operations (SD card)



\

These functions are implemented in versions of BASIC for the DataLogger and Teensy3.0/3.1.  Other versions on Coridium boards are currently under development.

The current version limits the use to having only 1 file open at a time, and only operations in the root directory. File names are limited of up to 8 characters period followed by up to 3 characters. Spaces are NOT allowed in filenames.

File Functions
    FILEOPEN
    FILEREADDIR
    FILEREADBYTE
    FILEWRITEBYTE
    FILEEOF
    FILECLOSE

**Data Logger**

****The LPC4330 based DataLogger has an SDcard socket and supports the File operations.

\

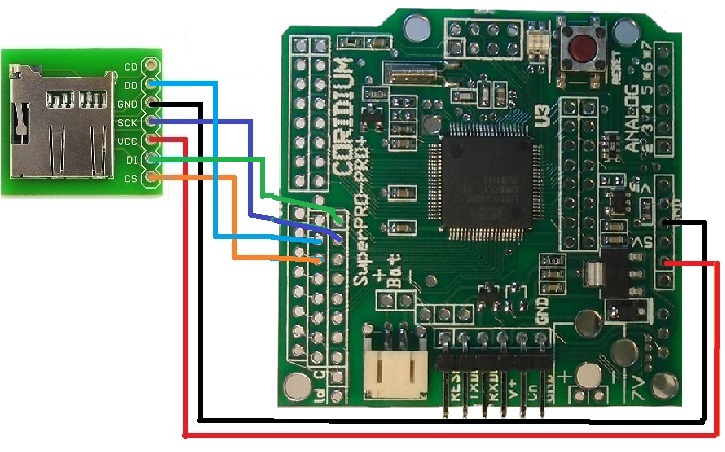

Connections for SuperPRO (unreleased alpha version)​



  • SD DI  --   MOSI   P0.18
  • SD DO --  MISO   P0.17
  • SD SCK -- SCK    P0.15
  • SD CS --  SSEL   P0.16

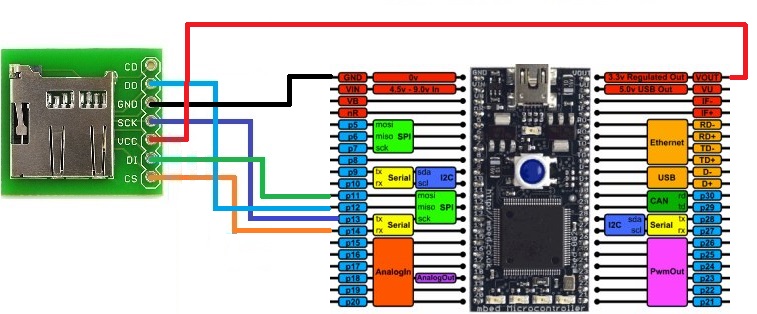

Connections for mBed​

Connections for ArchPro​


 The connections are made on the SPI connector\

  • SD DI  --   MOSI   P0.18
  • SD DO --  MISO   P0.17
  • SD SCK -- SCK    P0.15
  • SD CS --  SSEL   P0.16

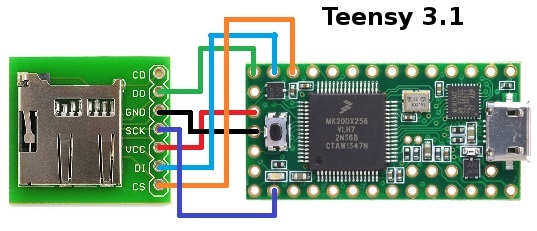

Connections for Teensy​
