Step 3: Programming the IO
A program that uses IO
Type the following program in the console window. (below)
DIR(15)= 1
' enable pin 15 as an output WHILE X<30 OUT(15) = X AND 1 ' drive pin 15 high when x is odd, low when x is even X=X+1 WAIT(500) LOOP

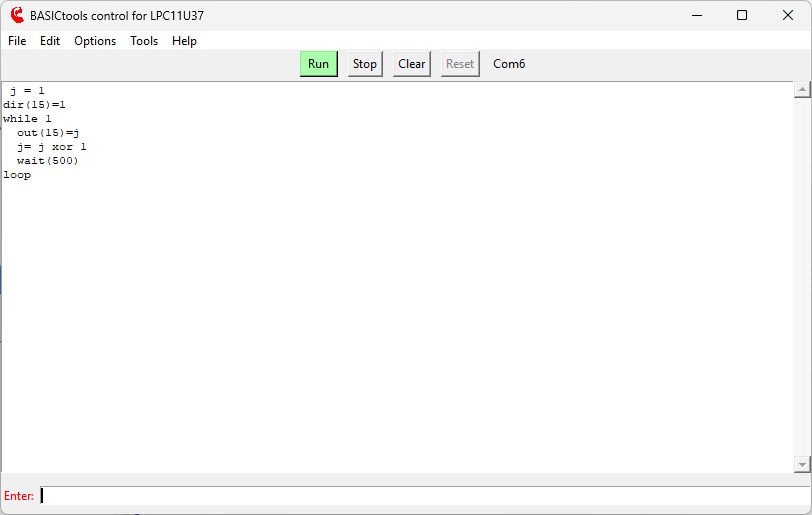

Now RUN the program

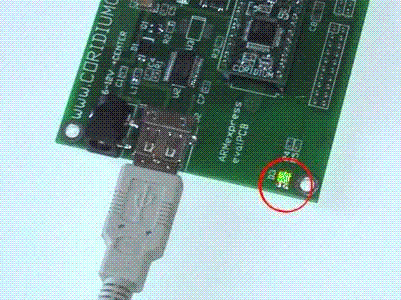

The LED on the PCB should Flash 15 times.
And see the results
Stop the program
To stop a running program simply press the Stop button.
